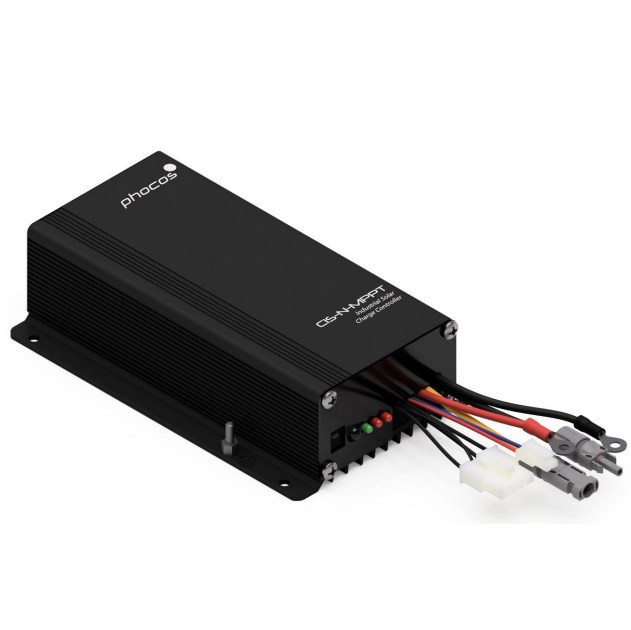

Off-Grid PV systems exposed to extreme weather/environmental conditions impose increased risk of damage to the power electronics. In order to ensure reliable battery protection under such conditions, Phocos developed the CIS-N-MPPT charge controller family to prevent corrosion.

The CIS-N-MPPT series include convenient and advanced lighting control, which allows the user to decide whether they want the automatic lighting control with LED dimming to be either time or low-voltage activated.

Product Features

• Infrared-programmable load timing feature with dimming ideal for lighting systems

• 2 years of system performance data accessible via MXI-IR interface, PC software (CISCOM)

• Up to 98% power conversion efficiency

• Up to 4-stage charging increases battery lifespan

• I/V or I/U curve sweep algorithm increases performance when panels are shaded

• Fully encapsulated anodized aluminum housing design prevents damage from corrosion, insects and dust

• 20 / 30 cm connection wires (CIS-N-MPPT 85/15 / CIS-N-MPPT 100/30)

• Compatible with 60 cell solar modules

• Compatible with Lithium batteries (no BMS communication)

• IP68 Ingress Protection

Optional Accessories

CIS-CU

• Infrared remote control

MXI-IR

• Infrared to USB programming accessory and interface to CISCOM software.
