The CIS-N-MPPT-LED is a multi-functional solar charge controller with built-in LED boost driver for solar outdoor lighting systems. Equipped with a widely-adjustable automatic light timer that uses solar input voltage to determine day and night, the CIS-N-MPPTLED adjusts to seasonal changes. In addition, the built-in LED driver features timed and low-voltage dimming of LED strings.

Like all CIS family products, CIS-N-MPPT-LED has been designed for the harshest industrial environments and features a rugged, fully potted (IP68) enclosure that prevents damage from dust, insect and water ingress. The infrared communication feature allows for full-control of light timer settings and LVD customization via remote control accessory (CIS-CU) and full adjustment of the battery charge regime and access to 2 years of system data via USB adaptor (MXI-IR) and our free PC software (CISCOM).

Product Features

• Three functions in one: MPPT charge controller + light timer + LED driver

• Works in 12 or 24 V systems

• Up to 30% additional power yield compared to conventional PWM controllers

• IP68 ingress protection

• Compatible with 60 cell PV modules Technical Data

• Input for motion detector (PIR)

• Infrared-programmable load timing feature with dimming, which is ideal for lighting systems

• 2 year datalogging memory

• Programmable for LFP batteries with a BMS using CISCOM in expert mode

• Compatible with Lithium batteries (no BMS communication)

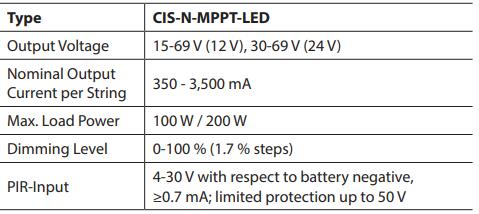

Driver Data

Technical Data
